RFloXa Hawk31 Max (Gold)
RFloXa Hawk31 Max (Gold)
Couldn't load pickup availability

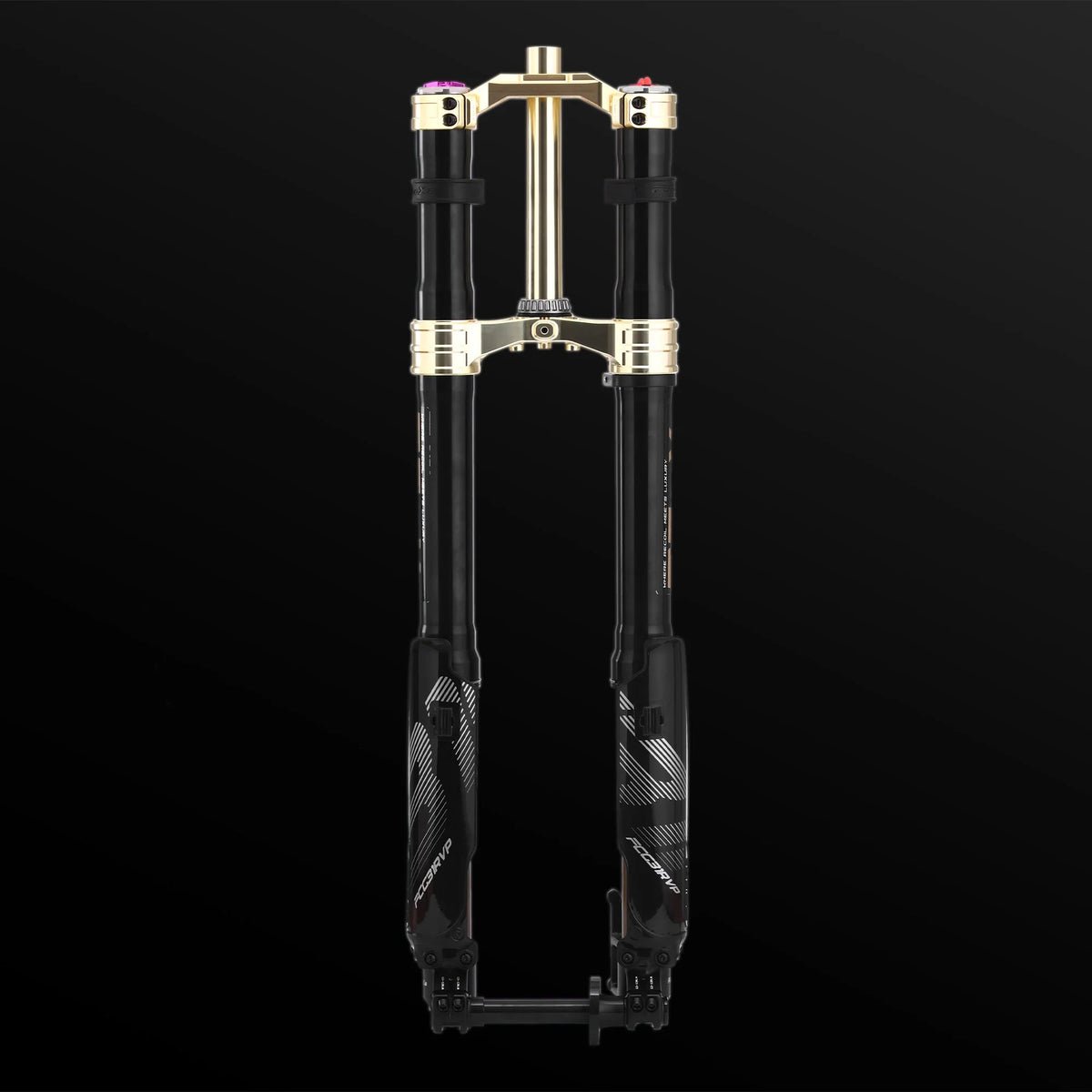

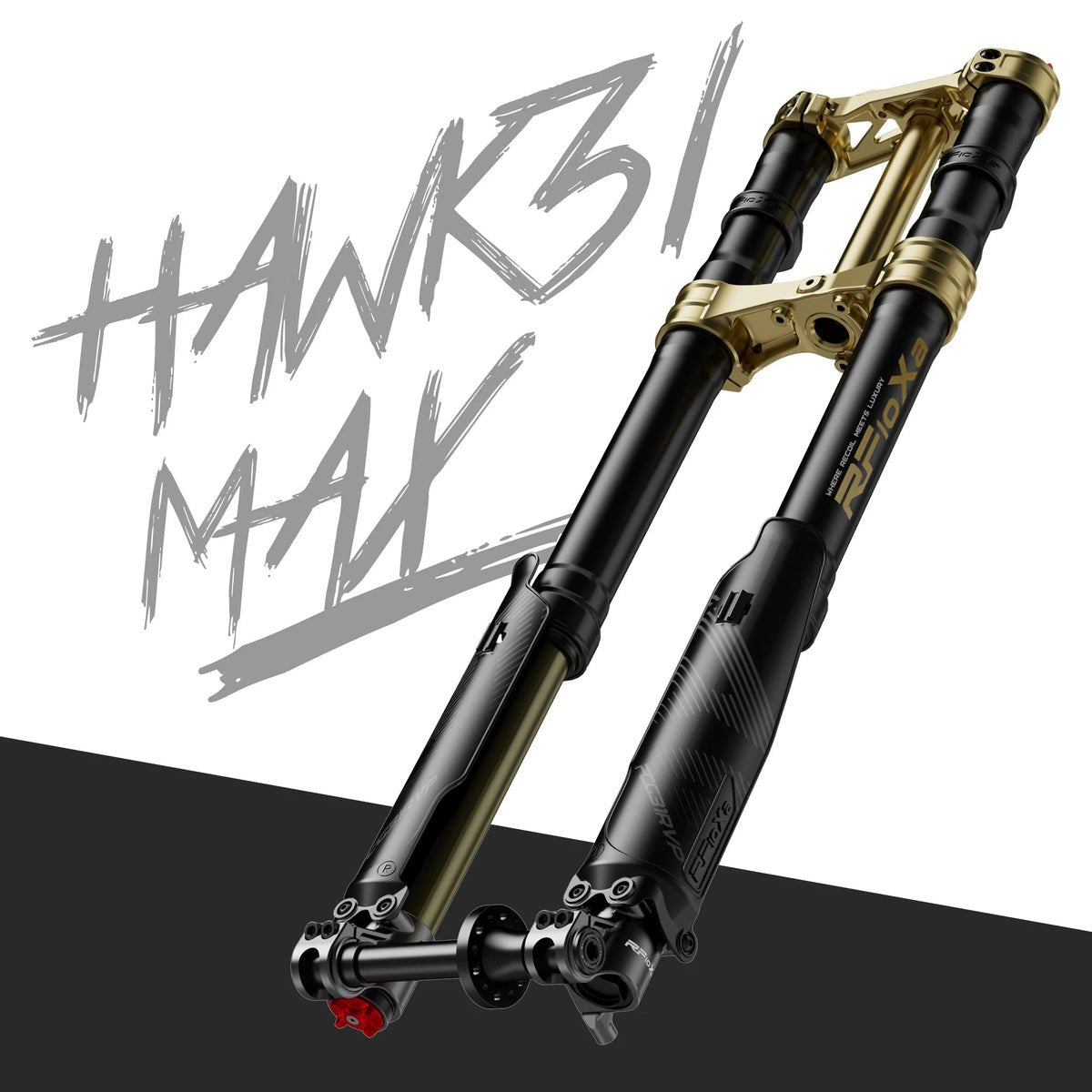

RFloXa Hawk31 MAX Front Fork (Gold) + Max Widened Triple Clamp Kit
Note: Data is based on Talaria Sting MX3/MX4/MX5, Surron Light Bee, and E-Ride Pro geometry. Non-standard or modified front wheel cores may require adjustment for proper fitment.
Specifications
Center Distance: 750 – 800 mm
Main Piston Travel: 203 – 228 mm
Tube Diameter: 37 mm
Caliper Mount Spacing: 74 mm
Disc Size: 203 mm (Upgradeable to 220 mm)
Damping System: Inverted Oil-Spring
Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
Material: AL6061-T6 Forged Aluminum Bottom Brackets / AL7075-T6 Fork Tubes
Spring Wire: 55CRSI
Triple Clamp: CNC Precision Machined
Fitment Compatibility
- Talaria MX3 / MX4 / XXX
- Surron LBX / LBS / L1E
- Segway X160 / X260
- E-Ride Pro S / SS 1.0 / 2.0
- Rawrr Mantis
- 79 Bike Falcon M
- Ventus One
- RFN Apollo
- Rerode R1
Engineered for Maximum Stability and Precision
1. Max Widened Stability

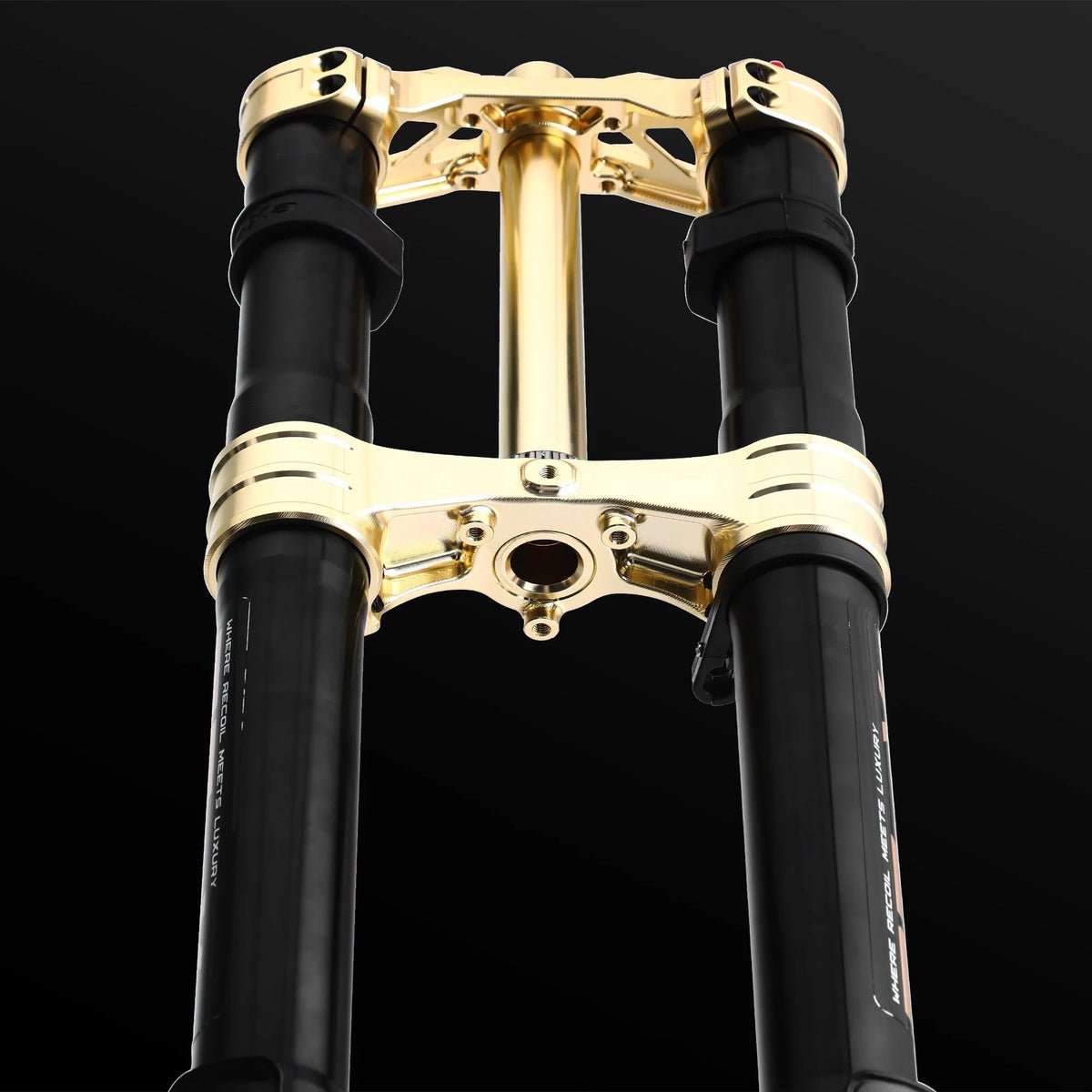

The MAX widened triple clamp kit includes upper and lower clamps, a steering stem, raised flange, widened front-wheel axle kit, and all mounting hardware. CNC-machined from high-strength aluminum, this setup delivers unmatched steering precision and rigidity. Available in black, purple, blue, red, and titanium gold finishes for a seamless, high-performance look.
2. High-Performance Design
The Hawk31 MAX front fork provides 203-228 mm travel with 37 mm stanchions and a 74 mm caliper mount spacing, supporting 203 mm – 220 mm rotors. Designed for electric dirt bikes and downhill applications, it offers superior control, traction, and shock absorption across any terrain.
3. Advanced Suspension Technology
Utilizing an inverted oil-spring damping system with asymmetrical left-right structure, the Hawk31 MAX delivers precise, independent damping. Multi-stage adjustability for high-speed compression, low-speed compression, rebound, and spring preload lets riders fine-tune suspension response for every riding style.
4. Robust Build Quality
Built from AL6061-T6 forged aluminum lower brackets and AL7075-T6 aluminum fork tubes, with 55CRSI spring wire, this fork offers outstanding strength, durability, and stability even under extreme stress.

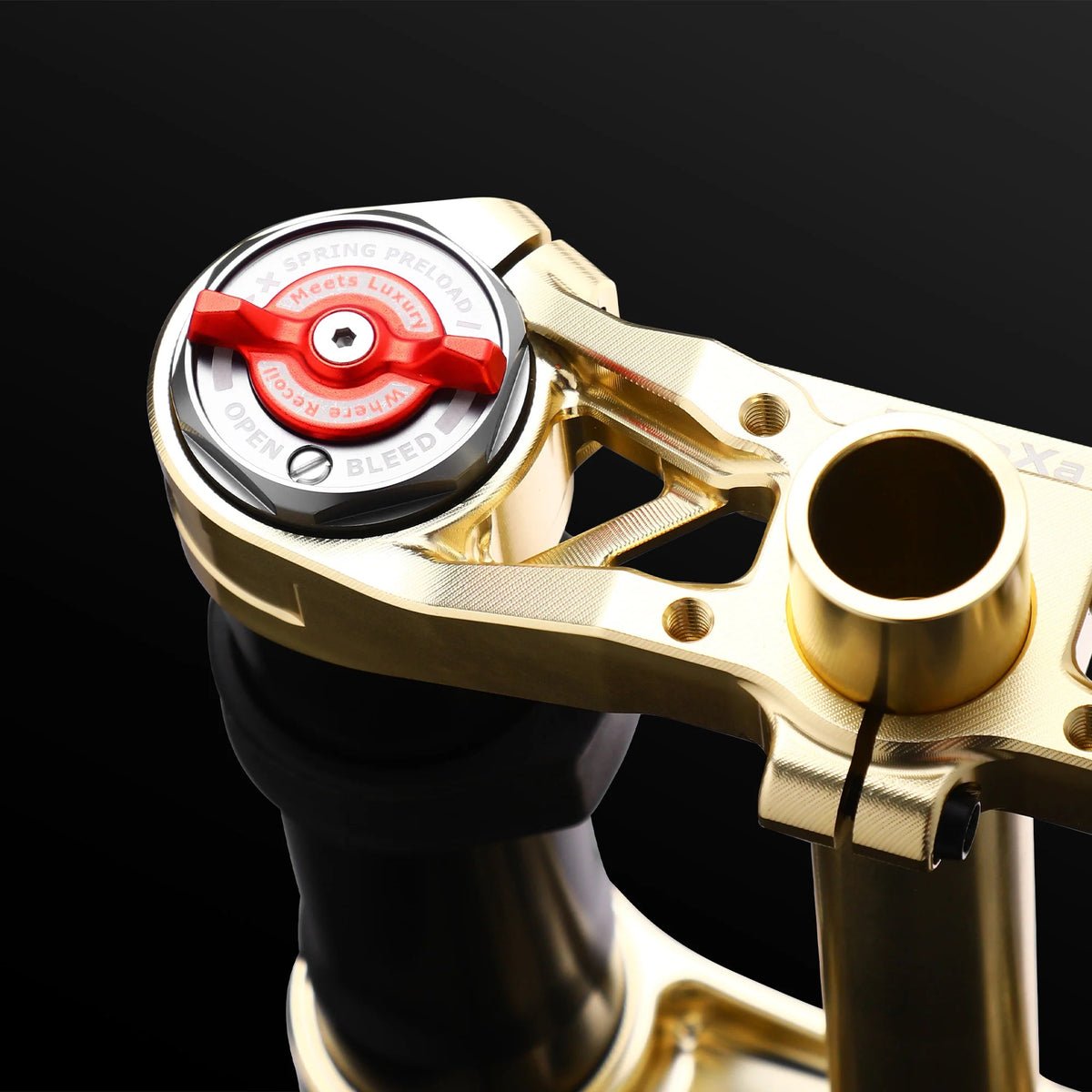

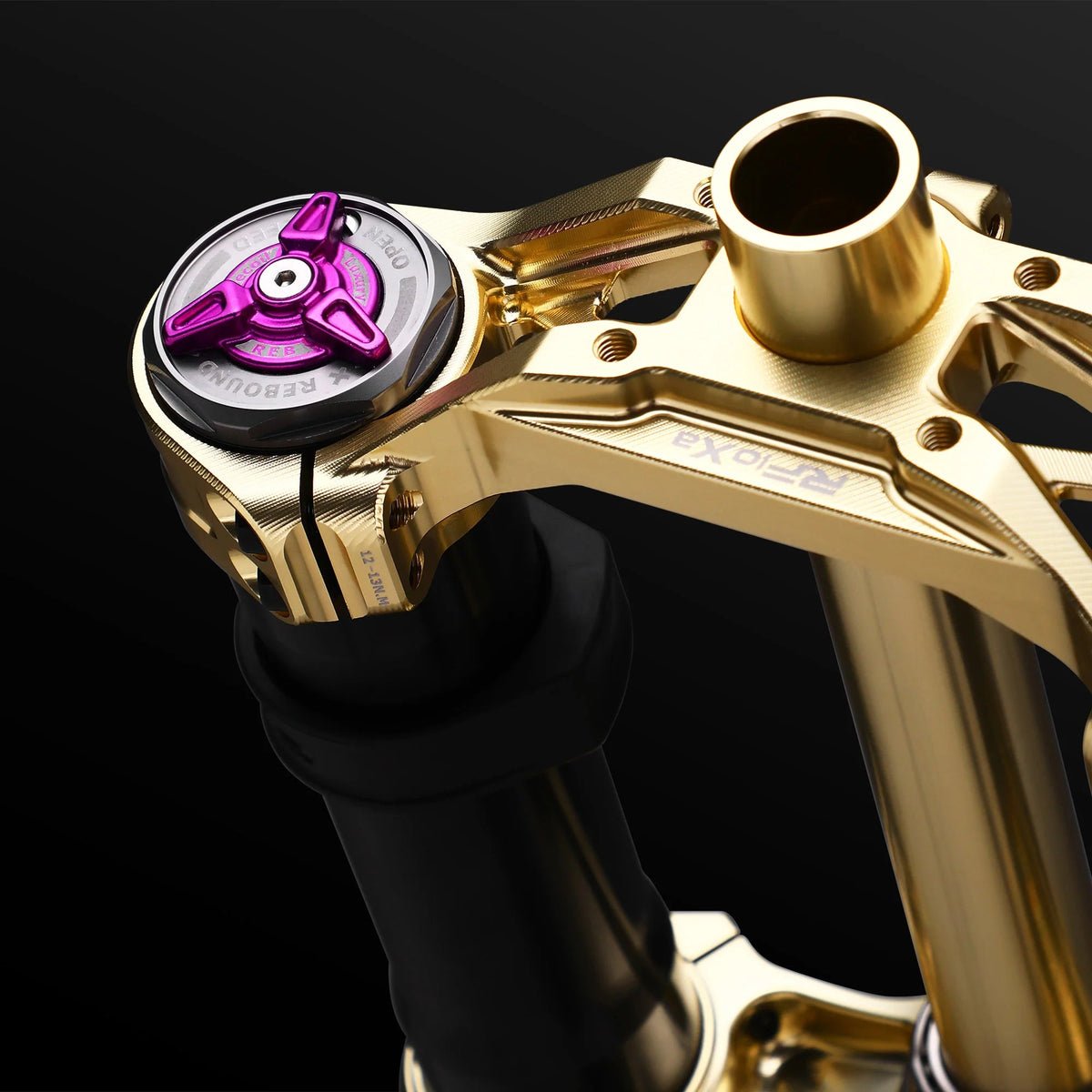

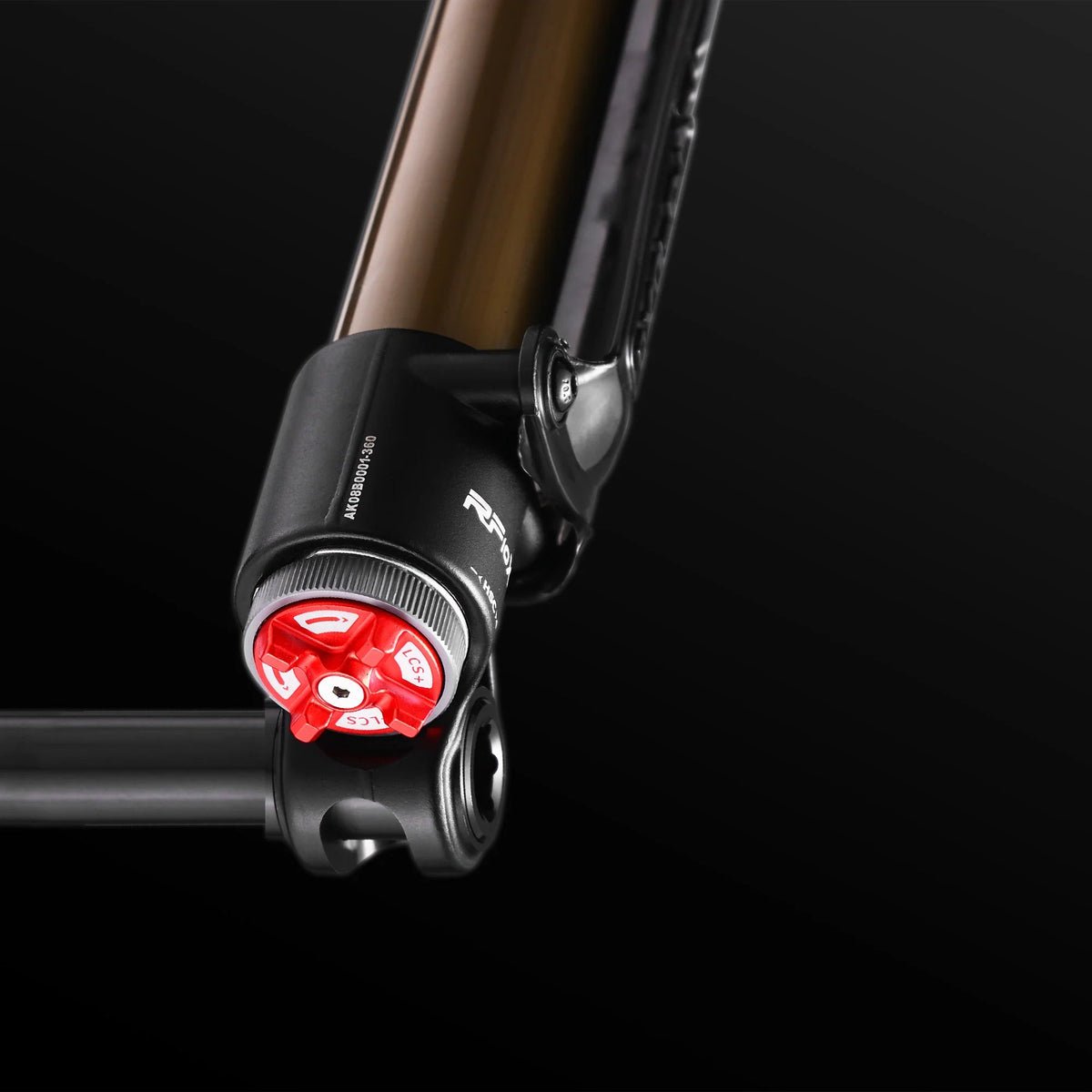

5. Customizable Adjustments
Manual knobs allow quick tuning of HSC, LSC, rebound, and preload on the fly. Adapt instantly to track, trail, or downhill conditions.
6. Enhanced Bottom-Out Support
An internal oil-pressure bottom-out system provides strong resistance at full travel, preventing harsh impacts and maintaining composure during aggressive riding.
7. Reliable Damping Performance
Dual compression valve plates and low-friction, low-freezing-point shock oil ensure consistent, reliable damping in all climates and conditions.
